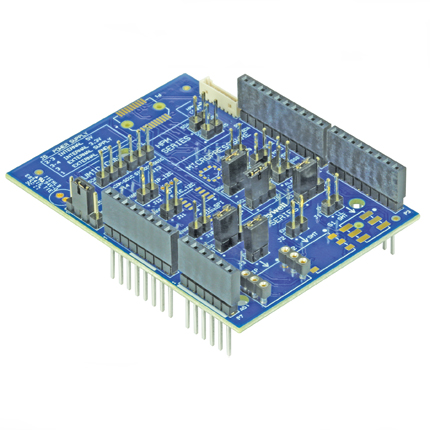

The new SEK002 Sensor Evaluation Kit from Honeywell allows designers to quickly obtain and capture readings from Honeywell sensors thus greatly speeding up development time. The sensor evaluation kit is compatible with a range of Honeywell sensors including the ABP Series (digital versions only) and MPR Series Board Mount Pressure Sensors; Honeywell HumidIcon™ Digital Humidity/Temperature Sensors: HIH6100 Series, HIH6000 Series, HIH7000 Series, HIH8000 Series, HIH9000 Series and HPM Series Particle Sensors.
The SEK002 Sensor Evaluation Kit interfaces with an Arduino™ Uno Microcontroller Board and Honeywell supplied software (Windows Application), the Honeywell sensor to be evaluated is then simply mounted into the relevant socket on the SEK002 evaluation kit and the readings are displayed on the PC screen without the need to develop any code. The sensor readings may also be recorded to a .csv file for further analysis, and, in the case of the MPR Series a leadless SMT mounted on breakout board is available. A specialized Honeywell cable ( 32332297-001) is also available for easy connection to the HPM Series Particle Sensors.
Honeywell also provide free software to control the Arduino™ Uno Microcontroller Board to take readings from the sensor which is available for download from Honeywell's website
The SEK002 kit provides a simple, quick and cost-effective method for designers to perform a thorough evaluation on a range of Honeywell sensors without having to spend time developing code before sensor readings can be captured. The sensor may also be mounted remotely if, for example, it is to be mounted in an oven for testing, this flexibility also allows the kit to serve as a useful prototype or proof-of-concept platform in the target end application further speeding up time to market.

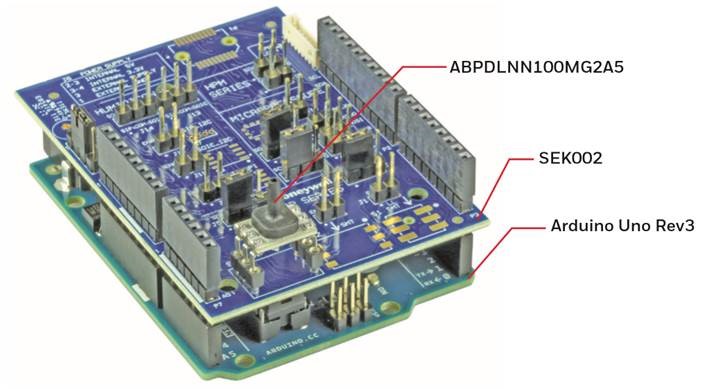

Typical Sensor Kit configuration
Anglia are offering customers a FREE SEK002 Evaluation Kit from Honeywell, please fill in the form below to register your interest now.
FREE samples for UK and Ireland customers only, subject to availability.
