The G5Q series from OMRON offers a compact, slimline and versatile relay suitable for a wide variety of applications, the G5Q has become a global standard for compact power relays having sold more than 500 million units since its launch in 2001. OMRON have now expanded the series with the latest addition of the G5Q-HR(TV8) for high inrush loads to TV-8 specification.
Available in coil voltages from 3V to 24 VDC the new -HR type includes option of stable, single or double winding latching contacts. The addition of latching contact options help meet the demand for energy saving making the relays suitable for applications requiring high efficiency when in standby mode or when used in battery operated equipment.
The G5Q-HR range has been designed to meet various high inrush standards including TV-8 (Peak inrush 117A / Break 8A 120 VAC), E Ballast 3A & 5A 277 VAC and IEC60669-1 (3A 277 VAC Capacitor 35uF).

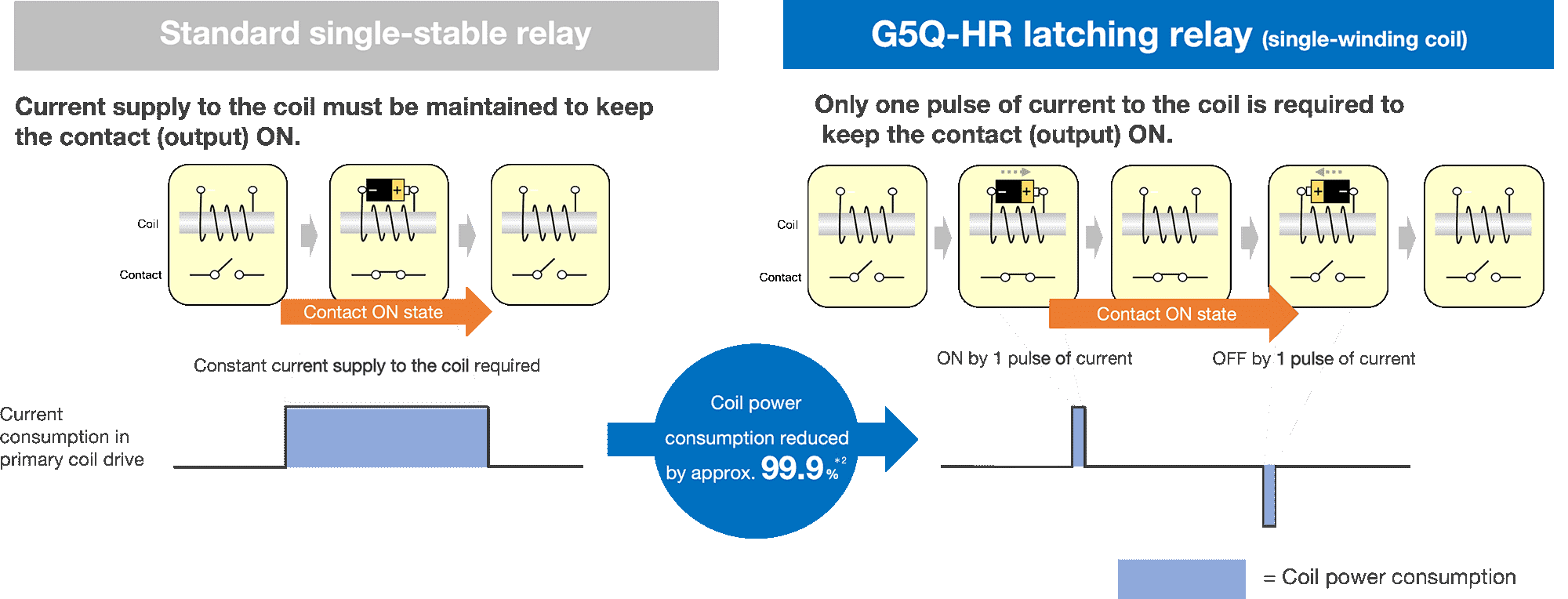

Coil power consumption comparison, Standard vs. Latching contacts

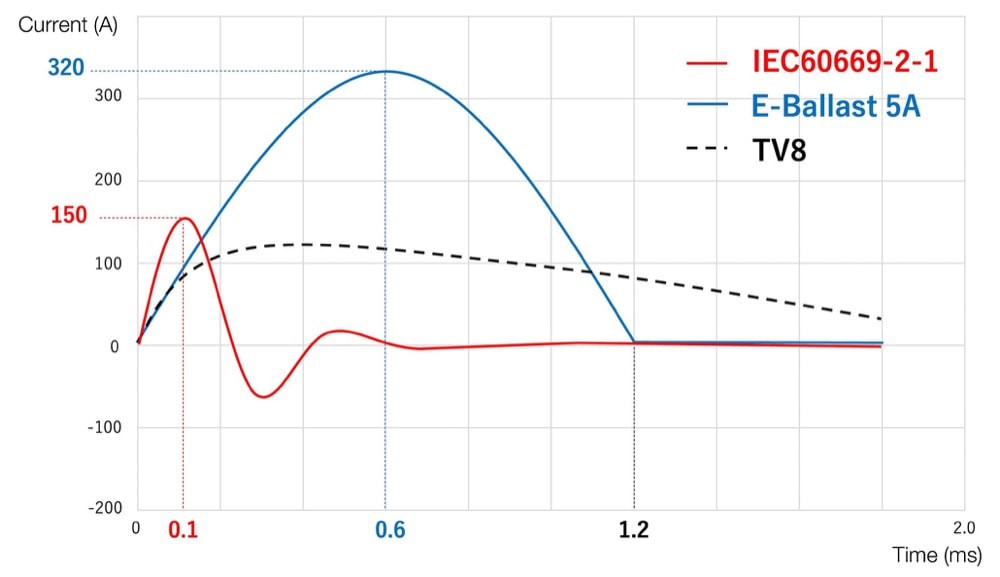

High inrush capability

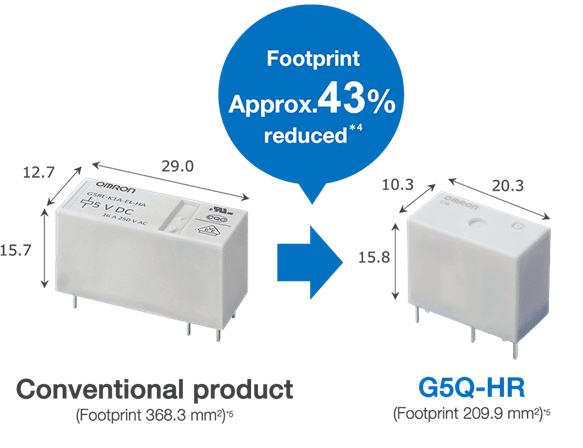

The G5Q-HR range has a compact slim design measuring just 20.3 x 10.3 x 15.8mm, compared with the popular G5RL OMRON relay this represents an approx. 43% reduction in PCB mounting area, yet the relay is still capable of handling currents up to 10A at 277 VAC.
Compact size
The combination of low power consumption, compact size and high inrush current makes the G5Q-HR series suitable for a broad range of applications including Inverters, Lighting, Building Automation, Motor Control and Home Appliances.
Anglia are offering customers FREE samples of the G5Q-HR high inrush miniature PCB power relay from OMRON, please fill in the form below to register your interest now.
Free samples are subject to availability.
