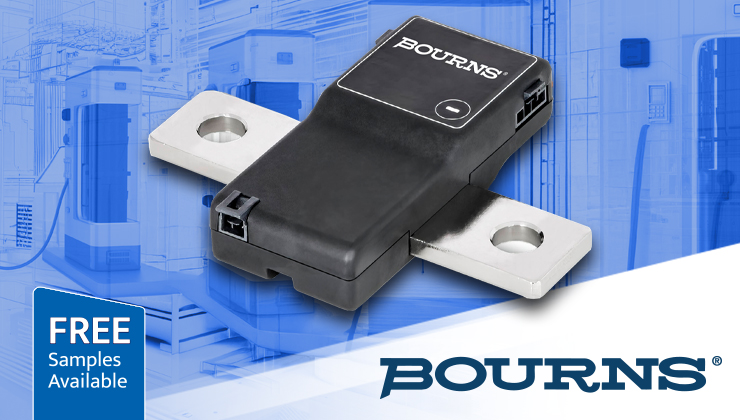

Bourns release SSD series digital shunt sensors offering superior accuracy and stability, samples available from Anglia.

Bourns Inc., a leading manufacturer and supplier of electronic components for power, protection, and sensing solutions, has announced the release of the Model SSD Shunt Sensor - Digital Series. These Digital DC Current Sensors offer superior accuracy, stability and electrical isolation and provide high accuracy over a wide operating temperature range.

The SSD series includes innovatively designed digital DC shunt-based current sensors that offer superior accuracy, stability and electrical isolation over a wide -40 °C to +115 °C operating temperature range. The SSD series are small and highly integrated digital System-in-Package (SiP) devices which are well-suited for a wide variety of battery-related current sensing applications including large-scale energy storage banks, renewable energy generation infrastructure, industrial motor drives, building automation systems, and EV charging stations.

The SSD series features a 16-bit automotive-grade microcontroller unit (MCU) and delivers accuracy of ±0.1 % full scale. The internal 24-bit Analog-to-Digital Converter (ADC) offers plug-and-play simplicity, helping to significantly streamline implementation so engineers can quickly add high-accuracy current measurement into their latest designs or retrofit it into existing ones. The digital shunt sensors are available in nominal currents of ±100A and ±500A with shunt resistances of 300µΩ and 60µΩ, respectively. The isolated design of the SSD series of digital DC current sensors allows it to be used on the low or high side of the circuit for maximum design flexibility.

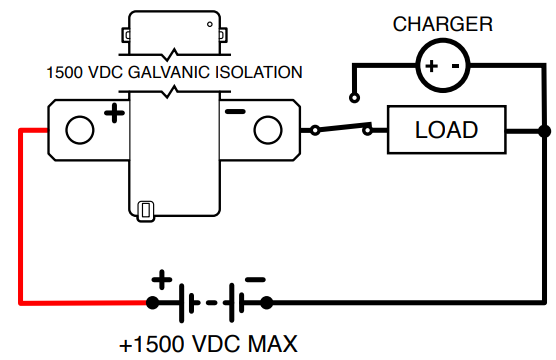

Circuit Diagram - Current only measurements

Free Samples and Evaluation Board
Key Features
  • 24-bit isolated shunt current sensor with option of CANbus or RS485/MODBUS interface
  • 100 A (2 kA peak) or 500 A (10 kA peak)
  • 1500 VDC reinforced galvanic isolation
  • ±0.1 % tolerance
  • 16-bit +150 °C microcontroller
  • 24-bit ADC with buffered analog inputs
  • ECC flash memory with autocorrect single bit errors
  • Internal and external CRC data error detection
  • Advanced non-linear temperature compensation
  • Operating Temperature range: -40°C to +115°C ambient
Data

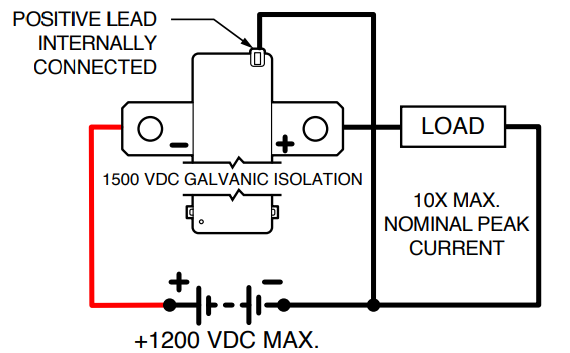

Circuit Diagram - Bus Voltage measurements

The SSD series shunt-based sensors also help eliminate the need for periodic device calibrations, all while providing highly accurate measurements that contribute to more efficient use of power. The SSD series is available in two models: the RS-485 serial interface model, which can also be configured as MODBUS RTU, and a customizable CANbus model. The RS-485 model can achieve communication speeds of up to 921600 baud whilst the CANbus model can communicate up to 1 M baud rate.

Anglia are offering customers a FREE sample of the SSD series Digital DC Current Sensors from Bourns, please fill in the form below to register your interest now.
