Renesas has introduced the RA2E1 Fast Prototyping Board which comes equipped with a R7FA2E1A93CFM microcontroller. This evaluation board has been specially created to assist designers with prototype development in a variety of applications.
The board features a built-in emulator circuit equivalent to an E2 emulator Lite allowing users to write/debug programs without requiring any additional tools. In addition, the board is equipped with Arduino Uno and Pmod™ interfaces included as standard and gives through-hole access to all pins of the microcontroller providing high expandability.
Click below to for the getting started with the RA2E1 Fast Prototype Board guide
Key Features
RA2E1 MCU Group
RA2E1 Fast Prototype Board

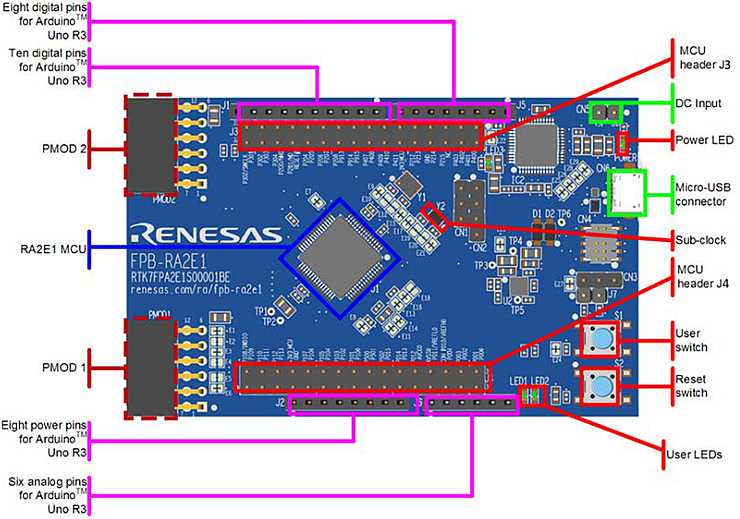

RA2E1 Fast Prototyping Board Layout
Sample software is also available to demonstrate the functionality of the RA2E1 MCU and for connecting between the RA2E1 Fast Prototyping Board and various wireless modules or various sensor modules.
RA2E1 Group MCU
The RA2E1 Group is the RA Family’s entry-level single-chip microcontroller based on the 48MHz Arm® Cortex®-M23 core and up to 128KB code flash and 16KB SRAM memory. The optimized processing and Renesas’ low power process technology make it the industry's most energy-efficient ultra-low power MCU. The RA2E1 group supports a wide operating voltage range of 1.6V to 5.5V and a large selection of packages such as LQFP, QFN, LGA, BGA, and WLCSP. The RA2E1 provides pin and peripheral compatibility with the RA2L1 group and is ideal for battery-operated applications and other systems requiring high performance and low-energy consumption in space-constrained applications.

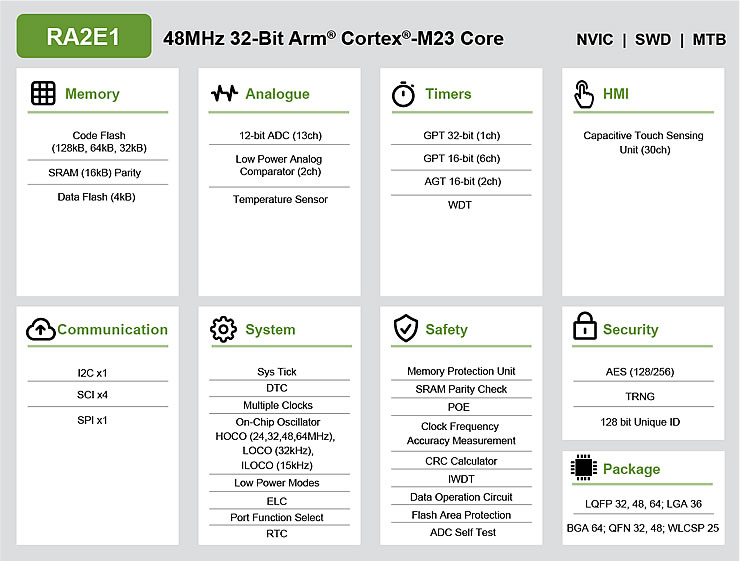

RA2E1 Block Diagram
The RA2E1 MCUs can be combined with Renesas’ complementary analog and power offerings to create comprehensive solutions for a variety of applications. Renesas has released a series of these “Winning Combinations” that include Arm core processors and are suitable for the low-cost, low pin-count and low-power of the RA2E1 MCUs. Contact Anglia to find out more about Winning Combinations from Renesas.
The RA2E1 Group MCU is suitable for a wide range of applications including General purpose, Consumer applications, Home appliances, HVAC, Industrial automation, Building automation, Medical and healthcare.
To discover more about the Entry Line RA2E1 Group MCU click here.
Anglia are offering customers a FREE RA2E1 Group MCU Fast Prototyping Board From Renesas, please fill in the form below to register your interest now.
FREE samples for UK and Ireland customers only, subject to availability.
