Phoenix Contact celebrate 50 years of COMBICON the world’s largest range of PCB connection technology, samples available from Anglia

For half a century, COMBICON PCB terminal blocks and PCB connectors from Phoenix Contact have been ahead of their time. Making the best technology even better is Phoenix Contact’s passion, each year they create new innovations which make PCB connection more compact, more powerful, or easier to use.

From the original KDS series, the first COMBICON PCB block introduced, today the range is seen as the global green standard for PCB connections, their products fulfil all international standards and approvals and are used in almost all applications in industry, building technology, infrastructure, and the energy sector.

The COMBICON portfolio has been continually developed since its inception 50 years ago, today the range includes PCB terminal blocks with screw or spring connection, in 1 to 40 positions, in miniature size formats up to parts which can handle currents over 232 Amps. Phoenix Contact offer a huge diversity of connection technologies transmitting signals, data and power for almost any application you can think of.

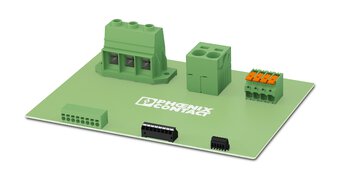

PCB terminal blocks

PCB terminal blocks from the XS through XXL COMBICON product lines enable the easy and safe transmission of signals, data, and Power directly to the PCB.

  • Conductor cross-sections from 0.14 to 95 mm2
  • Currents up to 232 A and voltages up to 1,000 V
  • Screw, spring, or insulation displacement connection
  • Pitches from 2.5 to 20 mm
Free Samples

Key Features

PCB terminal blocks

  • For conductor cross-sections from 0.14 (AWG 26) to 95 mm2 (AWG 3/0)
  • For currents up to 232 A (IEC) / 200 A (UL B, C)
  • For voltages up to 1000 V (IEC) / 600 V (UL B, C)
  • With screw, spring, and insulation displacement connection for various connection directions
  • For 2.5 to 20 mm pitch
  • For wave, THR, and SMT soldering

PCB connectors

  • For conductor cross-sections from 0.14 (AWG 26) to 35 mm² (AWG 2)
  • For currents up to 125 A (IEC) / 115 A (UL B, C)
  • For voltages up to 1000 V (IEC) / 600 V (UL B, C)
  • With screw, spring, insulation displacement, and crimp connection for various connection directions
  • For 2.5 to 15 mm pitch
  • Various combinations available for board-to-board, wire-to-board, and wire-to-wire connections, as well as individual cable assemblies
  • SKEDD direct-connection technology

High-current feed-through terminal blocks

  • For conductor cross-sections from 4 (AWG 10) to 95 mm² (AWG 3/0)
  • For currents up to 232 A (IEC) / 230 A (UL B, C)
  • For voltages up to 1000 V (IEC) / 600 V (UL B, C)
  • With screw, spring, and T-LOX connection for various connection directions
  • For panel thickness of 1 to 6 mm
  • Fastening with tool-free snap-in locking mechanism
Data

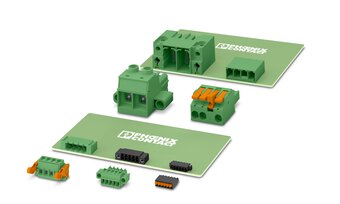

PCB connectors

The Phoenix Contact range of PCB connectors offer a universal, maintenance-friendly conductor connection for almost all device designs from a wide range of industries and markets.

  • Conductor cross-sections from 0.14 to 35 mm2
  • Currents up to 125 A and voltages up to 1,000 V
  • Screw, spring, lever, pierce, or crimp connection
  • Locking by means of latch mechanism systems or screw flanges

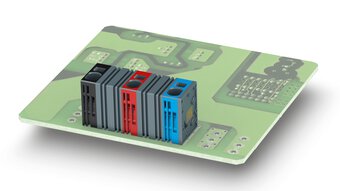

SPT modular series PCB terminal blocks

The SPT modular series configurable PCB terminal blocks can supply your electronics with up to 1,500 V in a single connection block.

  • Electrical ratings from 24 to 1,500 V
  • Simple configuration of colour spaces, individual position colours, and different cross-sections
  • Seamless digital process chain for the rapid development of the configured item, smooth production, and reliable delivery
  • 24/7 access to all configuration data, e.g., using the QR code on the product

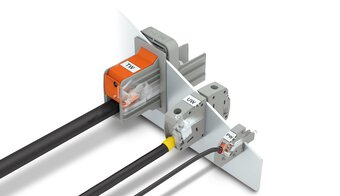

High-current feed-through terminal blocks

The Phoenix Contact range of high-current feed-through terminal blocks allow high currents and voltages to be transmitted safely and reliably through the housing panel.

  • Conductor cross-sections from 4 to 150 mm²
  • Currents up to 309 A and voltages up to 1,000 V
  • Screw, spring, T-LOX, or bolt connection
  • Panel thickness of 1 to 6 mm

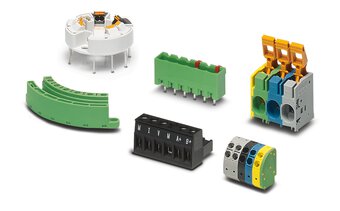

Customer-specific PCB connections

Maybe the standard portfolio does not have the exact part you need or perhaps you need a different colour? don’t worry Phoenix Contact are also able to provide a wide variety of custom adaptations, just contact Anglia with your requirement to find out more.

  • Colour variants in black, light grey, grey, and blue
  • Customized printing
  • Coding for additional safety
  • Individual solutions on request

Quality is at the core of everything Phoenix Contact do, the COMBICON range is recognised for its outstanding reliability and durability. They ensure precision down to the smallest detail using modern simulation methods, intensive qualification testing, and consistent control measures during the entire production process. The durability of Phoenix Contact products is seen as a key contributor to sustainability.

Where to next for the COMBICON range?

Hear what the future holds for COMBICON from Torsten Janwlecke, COO and President Business Area Device Connectors at Phoenix Contact.

Video Player is loading.
Current Time 0:00
Duration -:-
Loaded: 0%
Stream Type LIVE
Remaining Time -:-

1x



Watch this space for the next generation of innovative PCB terminal block and connector technologies from Phoenix Contact as they continue to push the boundaries.

Anglia hold inventory on a wide range of Phoenix Contact COMBICON connectors, products are available from Anglia Live for same day despatch with free delivery

Click here for more information or to buy from Anglia Live

To celebrate this incredible 50-year milestone, Anglia are offering customers FREE samples of the COMBICON PCB terminal blocks and PCB connectors from Phoenix Contact, please fill in the form below to register now.

To register for FREE samples of the COMBICON PCB terminal blocks and PCB connectors from Phoenix Contact, please fill in the form below
