Renesas has expanded its 32-bit RA Family of microcontrollers (MCUs) with a new Group based on the latest Arm® Cortex®-M33 core. The new 100-MHz RA4E1 Group has best-in-class power consumption balanced with high performance and optimized feature integration. It enables fast design cycles and easy upgrades to other RA Family devices.
The RA4E1 MCUs are the first Entry-Line Group in the 100-MHz RA4 Series. The group includes four different parts, spanning from 48-pin to 64-pin packages, and from 256kB to 512kB of flash memory along with 128kB of SRAM. The RA4E1 devices offer the lowest active power consumption in their class, using only 60µA / MHz while executing from Flash at 100MHz. They deliver an optimized combination of innovative peripherals, connectivity options and system cost saving features. The RA4E1 Group is ideal for cost-sensitive applications and other systems requiring an optimal combination of performance and low power consumption.
The Renesas RA4E1 group of 32-bit microcontrollers (MCUs) uses the high-performance Arm® Cortex®-M33 core with TrustZone. The RA4E1 is built on a highly efficient 40nm process and is supported by an open and flexible ecosystem concept—the Flexible Software Package (FSP) —and is the perfect entry point into the RA Family of microcontrollers. The RA4E1 is suitable for entry IoT applications requiring value optimized feature and connectivity integration, total system cost reduction and an optimized mixture of high performance with 100 MHz Cortex-M33 Core in combination with lowest active power consumption down to 81µA/MHz running the CoreMark® algorithm from Flash.
Renesas' RA Family now boasts over 150 parts ranging from 48MHz to 200MHz. The RA Family MCUs offer industry-leading power consumption specifications, a very wide range of communications options, and best-in-class security options, including Arm TrustZone® technology. All RA devices are supported by the Renesas Flexible Software Program (FSP) that includes highly efficient drivers and middleware to ease the implementation of communications and security. The FSP’s GUI simplifies and accelerates the development process. It enables flexible use of legacy code as well as easy compatibility and scalability with other RA Family devices. Designers using FSP also have access to the extensive Arm ecosystem, offering a wide range of tools that help speed time-to-market.

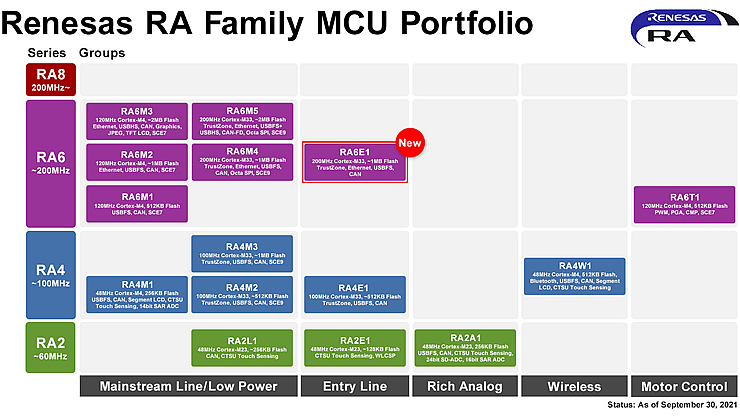

Renesas RA Family Microcontrollers at a glance

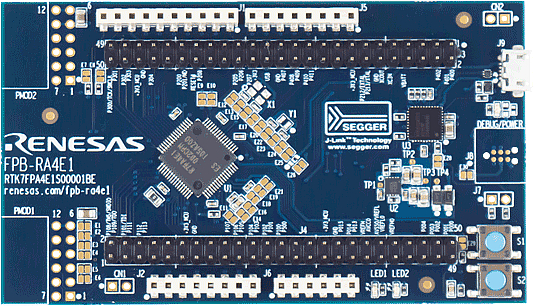

Fast Prototype board
Support for developers is provided with the RA4E1 Fast Prototyping Board which comes equipped with a R7FA4E10D2CFM microcontroller and is an evaluation board specialized for prototype development in a variety of applications. The board has a built-in SEGGER J-Link™ emulator circuit so developers can write/debug programs without additional tools. In addition, with the integrated Arduino Uno and Pmod™ interfaces included as standard and through-hole access to all pins of the microcontroller the board is not only flexible but has high expandability. Sample software is available to demonstrate the functionality of the RA4E1 MCU and for connecting between the RA4E1 Fast Prototyping Board and various wireless modules or various sensor modules.
Winning Combinations
Renesas has combined the RA4E1 MCUs with complementary analog and power offerings that work together seamlessly to create Winning Combinations for a variety of applications. Examples of these Winning Combinations include a Smart IoT Air Purifier and a Smart Coffee Machine for the RA4E1 MCUs. Renesas offers more than 250 Winning Combinations with compatible devices for a wide range of applications and end products. They can be found at www.renesas.com/win.
Anglia are offering customers a FREE fast prototyping board and samples of the RA4E1 Microcontrollers from Renesas, please fill in the form below to register for fast prototyping board and samples now.
Free samples are subject to availability.
