Sensirion break size barrier in CO2 sensing with un-matched price-to-performance ratio, evaluation kit and samples available from Anglia

Sensirion SCD4x CO2 Sensor



Sensirion have launched the SCD4x series of next generation miniature CO2 sensors that offer an unmatched price-to-performance ratio along with an evaluation kit SEK-SCD41 which helps developers accelerate their designs. This sensor builds on the photoacoustic sensing principle and Sensirion’s patented PASens® and CMOSens® Technology to enable unmatched small sensor size combined with high performance.

As people across the world return to public area’s such as the work place and schools despite the coronavirus pandemic, this can present some issues as many of these environments are often enclosed or potentially poorly ventilated spaces where occupants can be sitting side by side for several hours. Of course, this raises concerns about virus transmission. Tiny droplets (known as aerosols) are emitted not only when people cough or sneeze, but also during normal breathing and speech. These aerosols may contain viruses, which is why frequent and effective ventilation of enclosed spaces is more important than ever. The more fresh air there is in a closed room, the less exhaled air which may contain viruses.

Free Evaluation Kit and Samples
Key Features & Benefits
  • Photoacoustic sensor technology PASens®
  • Smallest form factor: 10.1 x 10.1 x 6.5 mm3
  • Surface-mount device for effective assembly
  • Reflow solderable (SMD)
  • Space and cost-effective assembly
  • Superior mechanical robustness
  • Highest freedom of design
  • Large output range: 0 ppm – 40’000 ppm
  • Large supply voltage range: 2.4 – 5.5 V
  • Current consumption:
    • 17 mA (meas. rate = 5 s)
    • 0.5 mA (meas. rate = 5 min)
  • No external circuitry required, no energy loss
  • High accuracy: ±(40 ppm + 5 %)
  • Accurate readings right after assembly
  • Digital interface I2C with digital output signal
  • Integrated temperature and humidity sensor
  • Adjustable current-consumption down to < 0.4 mA avg. @ 5 V, 1 meas. / 5 minutes
  • Lowest integration and product cost
Data

Various solutions for regular ventilation in enclosed spaces exist and by far one of the most effective indicators that a space needs ventilating is to measure the CO2 level, here is where modules equipped with Sensirion CO2 sensors can be used to effectively measure air quality in enclosed spaces. The advantage: a CO2 warning system is easy to use, intuitively understandable thanks to the traffic light system, and measures with high accuracy. A CO2 warning system ensures regular and effective ventilation, so occupants have the confidence to return to these spaces. In addition to reducing the risk of transmitting viruses such as COVID-19, CO2 reduction measures also increase concentration capacity – another positive effect.

CO2 sensing for better indoor air quality

The SCD4x miniature CO2 sensors are compatible with SMD soldering processes and feature a small footprint allowing cost and space-effective integration to boost freedom of design for customers. The CO2 sensor also integrates a best-in class humidity and temperature sensor which enables superior on-chip signal compensation and addition RH and Temperature outputs. The sensor has a large supply voltage (2.4 V – 5.5 V) capability, coupled with robustness towards external stresses and adjustable power consumption make the SCD4x the perfect fit for varying customer needs.

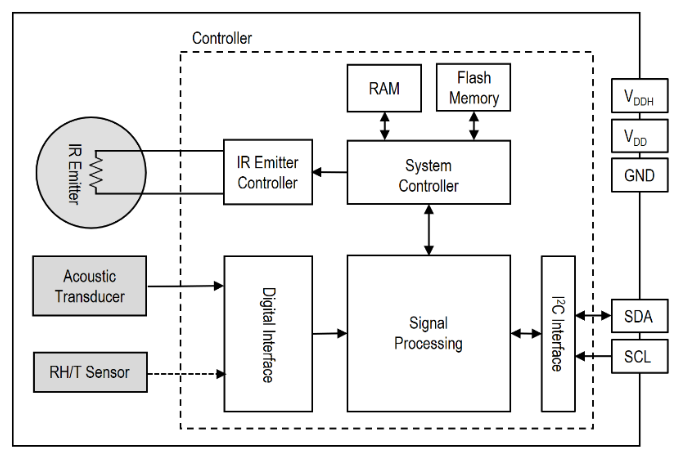

Functional Block Diagram

Functional Block Diagram

The SCD4x CO2 sensors use Sensirion’s PASens® Technology which is based on the photoacoustic sensing principle. The photoacoustic sensing principle allows extreme miniaturization of the CO2 sensor without compromising sensor performance due to the fact that the sensor sensitivity is independent of the optical cavity size. The reduced size and the smaller number of integrated components result in a highly price-efficient BOM structure. Thanks to the miniaturizing and the economical BOM structure of these new CO2 sensor, the SCD4x will open up numerous possibilities for a whole new set of products and applications.

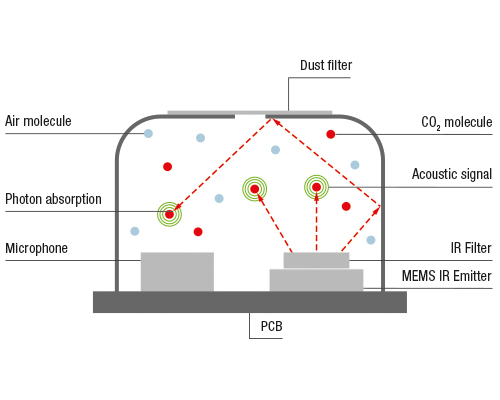

PASens® Technology

PASens Technology

The SCD4x come in two model variants, the SCD40 with a specified accuracy of ± (50 ppm + 5% of reading) for CO2 levels 400 – 2’000 ppm and the SCD41 with a specified accuracy of ± (40 ppm + 5% of reading) for CO2 levels 400 ppm – 5’000 ppm. The humidity sensing range is 0 %RH – 100 %RH with typical accuracy of 6% over 15 °C – 35 °C, 20 %RH – 65 %RH and 9% over -10 °C – 60 °C, 0 %RH – 100 %RH. Temperature measurement range is - 10°C – 60°C with a typical accuracy of 0.8°C over 15 °C – 35 °C and 1.5°C over -10 °C – 60 °C.

The SCD4x CO2 sensors are supported by the SEK-SCD41 evaluation kit which has been designed for easy and cost-efficient evaluation of the sensors. The kit contains a SCD41 mounted on a development board with a JST connector and through-hole pins. The included adapter cable (JST-Ethernet) connects to the SEK-SensorBridge for easy evaluation of the sensor via the SEK-ControlCenter viewer software. The kit also contains a 4-pin jumper wire cable that enables fast prototyping, e.g. through integration into existing evaluation platforms (like Arduino, Raspberry Pi, etc.).

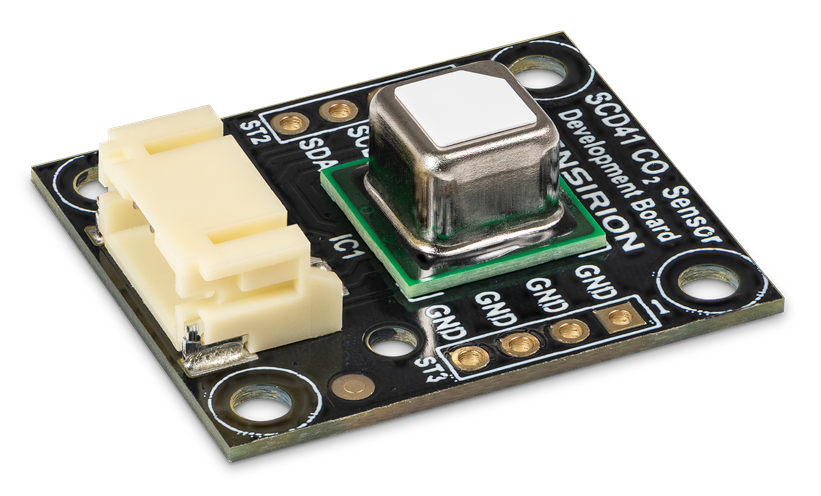

SCD41 Development Board

SEK-SCD41 evaluation kit introduction

The sensors are supplied on tape and reel packaging combined with its SMD assembly processing making the SCD4x ideal for high-volume applications.

Anglia are offering customers a FREE evaluation kit and samples of the SCD4x series of next generation miniature CO2 sensors from Sensirion, please fill in the form below to register for evaluation kit and samples now.

To register for a FREE evaluation kit and samples of the SCD4x series of next generation miniature CO2 sensors from Sensirion, please fill in the form below

First name *
Last Name *
Company *
Telephone *
Email Address *
Project Name
Project Volume *
Project Description
*


FREE samples for UK and Ireland customers only, subject to availability.
