Accelerate your PCB design with Free PCB Symbols, Component Footprints & 3D Models compatible with all major ECAD/MCAD packages.
How to download and use the Schematic Symbols, 3D models and PCB Footprints:

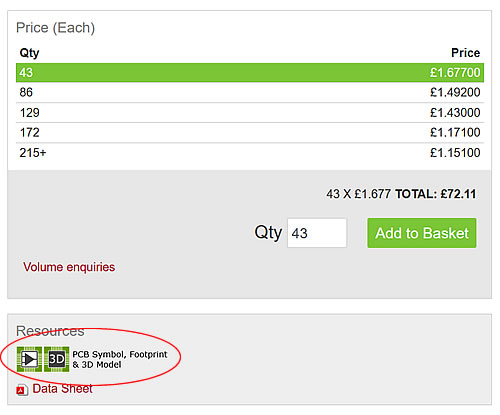

While browsing a part on Anglia Live, just click on the ECAD Model icon within the resources section of a product page as highlighted and drag it into your design. Once chosen, the schematic symbols, PCB footprints, and 3D models become instantly available for utilization and placement.
If a part does not have a symbol or footprint, you can request one by filling in the required information, including your email, and SamacSys will contact you once their engineering team completes your request.
