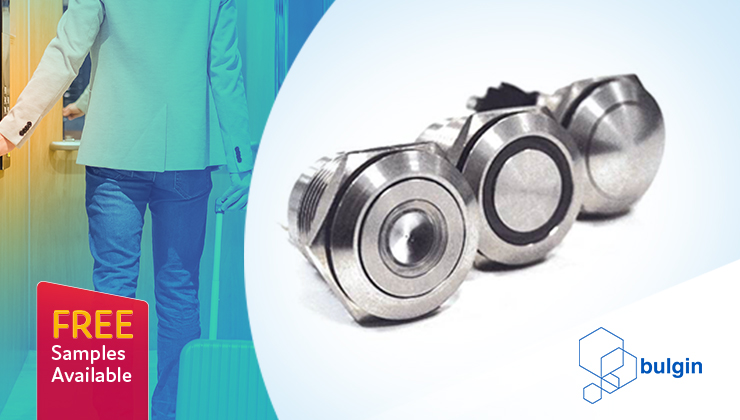

Bulgin’s range of robust vandal resistant switches are designed for high resistance to wear and tear, samples available from Anglia

Manufactured from robust Stainless Steel or Chrome Plated Brass, Bulgin’s extensive range of vandal resistant switches are designed with a high resistance to wear and tear, corrosion and harsh use in potentially hostile settings such as public areas, industrial environments and building management applications.

The switches are able to withstand extreme temperatures, dust, rain, snow, ice, dirt and moisture, Bulgin’s rugged anti vandal switches are built for tough, demanding applications that may be subject to abuse and damage. Not only are Bulgin’s vandal resistant switches robust they are available in a variety of styles and formats making them ergonomic and aesthetically pleasing, they can be specified with mechanical, piezo or capacitive touch buttons and with or without illumination. The wide range of options allow them to be seamlessly integrated into the design of the product rather than looking like the switch was an afterthought.

Free Sample
Key Features
  • Front and rear panel mounting options
  • Front and rear of panel sealing options
  • Prominent, domed and low profile switch styles
  • Various switching options
  • IP66 & IP68 sealing options
  • IK10 impact resistant models available
  • Dot and ring LED illuminated versions available
  • Variety of illumination colours and available
  • Illumination voltages 6, 12 and 24V sources
  • Industry standard panel cut-out sizes
Datas

Constructed from stainless steel throughout with an option of a brass, chrome plated alternative where the ultimate strength of steel is not required. The switches are available in front and rear panel mounted versions for ease of integration and have three profiles, prominent, domed and low profile with a choice of switching configurations. The low profile style switches are also available with a latching, push on - push off, action.

Prominent Domed Low Profile
Prominent Domed Low profile

Illuminated versions of the switches are available in dot and ring LED indication and a variety of illumination colours including bi-colour LED’s. Some models also feature LED illumination driven by 6V, 12V & 24V together with rear of panel sealing, these options make the integration of the switch simpler and add that extra dimension to control panel layouts and functionality.

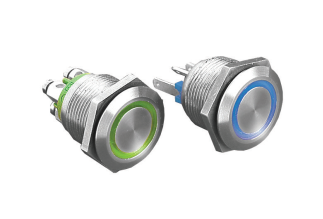

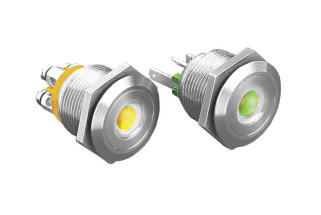

Dot Ring
Dot illumination Ring illumination

Terminations on the switches are provided by PCB pins, solder tags, quick connect tabs, flying leads or screw terminals depending on the model chosen.

Options of IP66 & IP68 front panel sealing and impact resistance to IK10 standards when combined together with the other features help the Bulgin vandal resistant switches meet the ergonomic, electrical and environmental demands of most switch panel designs.

With industry standard mounting diameters and panel cut-outs, IP rated versions and momentary or latching switch options, Bulgin’s extensive Vandal Resistant push button range can provide the perfect switch solution for a wide range of designs. Typical applications include kiosks, elevators, ticketing machines, industrial, security, building automation, marine, transport and off highway vehicles.

Click here to view the full range of Bulgin Vandal Resistant Switches available from Anglia Live

Anglia are offering customers FREE samples of Vandal Resistant Switches from Bulgin, please fill in the form below to register your interest now.

To register for FREE samples of Vandal Resistant Switches from Bulgin, please fill in the form below

First name *
Last Name *
Company *
Telephone *
Email Address *
Project Name
Project Volume *
Project Description
*


Free samples are subject to availability.
